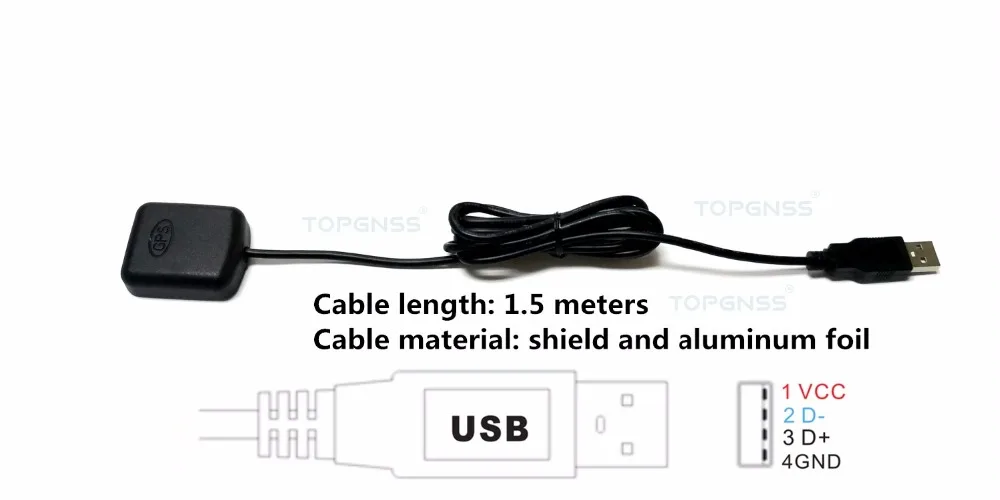

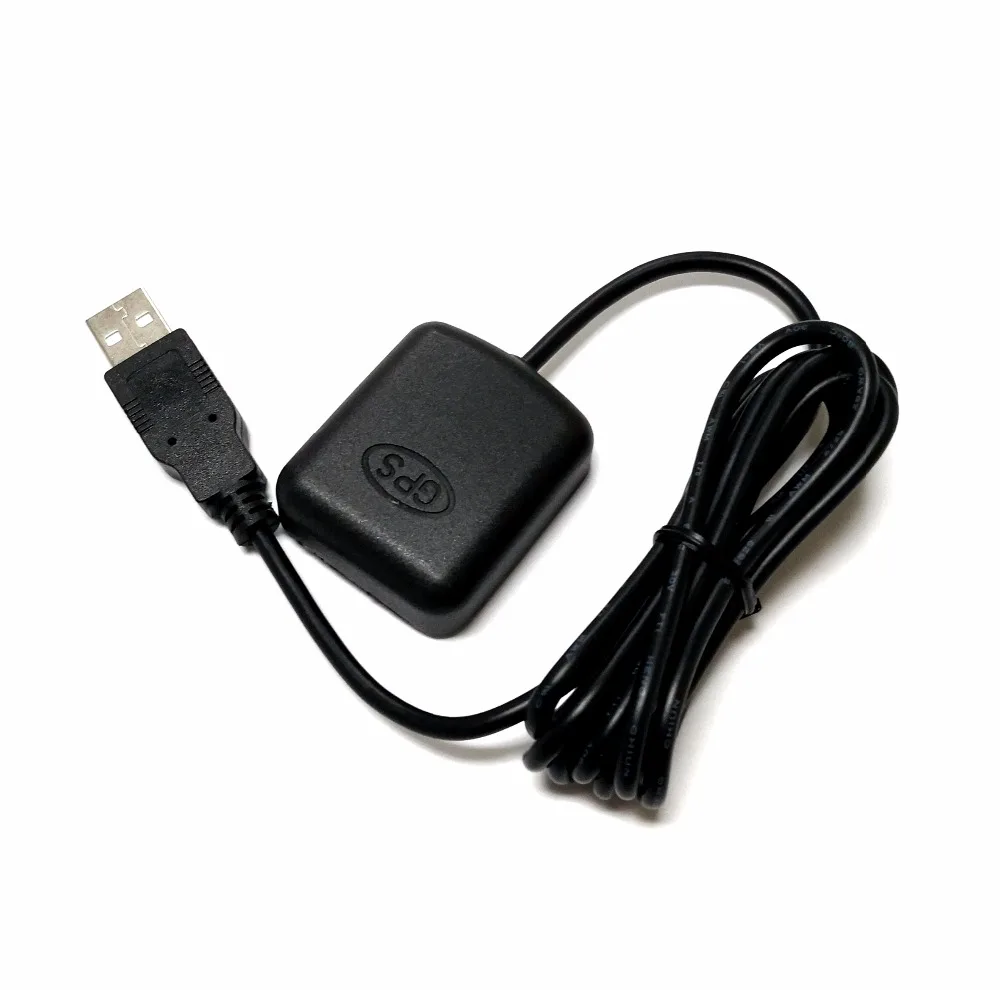

USB GPS+GLONASS Dual Mode Receiver！！！
Ultrasonic assembly, 100% waterproof IPX67 design.
Promotion 300PCS, products make you satisfied, please give us 5 points evaluation, thank you for your trust and support!
USB communication protocol support operating system: VistaXP, Windows10
Support: XP, win7, win8, win10 (support for all series windows system drive)
| Receiver Type |
72-channel 8030 engine GPS & QZSS:L1 C/A,1575.42MHz, GLONASS (GN208G): G1OF, 1598.0625~1605.375MHz BEIDOU (GN208B): B1 1561.098 MHz SBAS: WAAS, EGNOS, MSAS |
Horizontal |
2.5m (Autonomous) |
Position |
2.0m (WAAS) |
Accuracy |
(including SBAS & QZSS; CEP, 50% 24hr static, -130dBm, >6 SVs) |
Velocity |
0.05 m/s (speed) |
Accuracy |
<0.3(heading) (50%@30m/s) |
Time Pulse |
30ns (RMS) |
Signal Accuracy |
<60ns (99%) |
|
Time Pulse Frequency |
0.25 Hz ~ 10 MHz |
|
Time To First Fix Hot start Cold start |
Autonomous 1.5 sec 26 sec (50% -130dBm) |
|
Sensitivity (Autonomous) |
-148dBm (acquisition) -167dBm (tracking) |
|
Navigation. Update Rate |
Max. 10Hz, GPS & GLONASS or GPS & Beidou Max. 18Hz, GPS only Default 1Hz |
Max. Altitude |
50,000 m |
Max. Velocity |
<1,852 km/hr |
Protocol Support |
NMEA 0183 v2.3 and V4.x UART: 4800 bps N,8,1; GGA, GLL, GSA, GSV, RMC, VTG, TXT |
SBAS Support |
WAAS, EGNOS, MSAS |
RTCM 2.3 |
Messages 1, 2, 3, 9 |
Dynamics |
<4g |
| Power Supply |
3.3 ~ 5.0 V |
Power Consumption |
40mA/average tracking (TTL) |
|
Backup power |
1.4 ~ 3.6 V 15uA |
|
TTL I/O |
VIH: 2.31~3.8V, VIL: 0~0.66V V: ¡Ý2.8V, V¡Ü0.4V |
|
USB I/O |
VIH: 2.0~3.3V, VIL: 0~0.8V VOH: ¡Ý2.8V, VOL¡Ü 0.3V |
|
Protocols |
NMEA, u-blox Binary |
Environmental Data |
Operating temperature |
|
-40 ~ 85 except battery: -20~60 |
|
|
Storage temperature |
-40 ~ 85except battery: -40~60 |
|
Vibration |
5Hz to 500Hz, 5g |
Shock |
Half sine 30g/11ms |
Support NMEA2.3-4.X settings
0183 NMEA 4.X data
07:49:10 $GNRMC,074910.00,A,2235.51781,N,11353.51624,E,0.008,,231216,,,D*60
07:49:10 $GNVTG,,T,,M,0.008,N,0.015,K,D*34
07:49:10 $GNGGA,074910.00,2235.51781,N,11353.51624,E,2,12,0.65,26.2,M,-2.9,M,,0000*67
07:49:10 $GNGSA,A,3,10,12,18,21,25,31,32,14,24,50,42,,1.25,0.65,1.07*13
07:49:10 $GNGSA,A,3,72,76,65,75,71,74,,,,,,,1.25,0.65,1.07*1F
07:49:10 $GPGSV,3,1,12,10,67,334,50,12,38,077,45,14,22,298,41,18,77,124,43*7A
07:49:10 $GPGSV,3,2,12,21,23,194,45,24,21,039,34,25,47,135,46,31,29,237,45*73
07:49:10 $GPGSV,3,3,12,32,38,322,46,39,,,42,42,46,122,42,50,46,122,43*4F
07:49:10 $GLGSV,2,1,06,65,45,357,46,71,11,120,34,72,49,079,44,74,26,026,37*62
07:49:10 $GLGSV,2,2,06,75,81,022,46,76,41,210,42*6B
07:49:10 $GNGLL,2235.51781,N,11353.51624,E,074910.00,A,D*74
