Car alarm and keyless entry security system.
Two 4-button remote controls included.
A built-in parking light relay included.
Locking and unlocking output.
Assist to activate remote keyless entry.
Technical Parameters:
Brand: CARCHET
Output Current: direction light 5A x 2, siren 10A, central lock 10A
Code: Learning code
Voltage: DC12 ± 2V
Quiescent Current: ≤15A (except lamps and sensor)
Status Indication: 20mA intermittently
Shock Sensor current: <1mA
Remote control:
Operating voltage: 6-12V
Operating Current: 10 ± 2mA
Frequency: 315MHz- 433.92MHz
Quiescent current: 0mA
Remote Control Battery: 3 CR2016 button battery (built-in)
Connection : Please refer to the instructions!
Function features:
Warning identification, Anti-hijacking
Central door locking system automation
Door unclosed well warning function
Car finding/help calling, Re-arm, LED indicator
Engine cut off, Emergency disarm
Intruding warning, Power off memory
Remote trunk release(negative signal)
Remote transmitter and receiver check code( learn code)
Electrical/Pneumatic central locking optional
Side door trigger(negative signal)
Silent Arm, Arming reminding

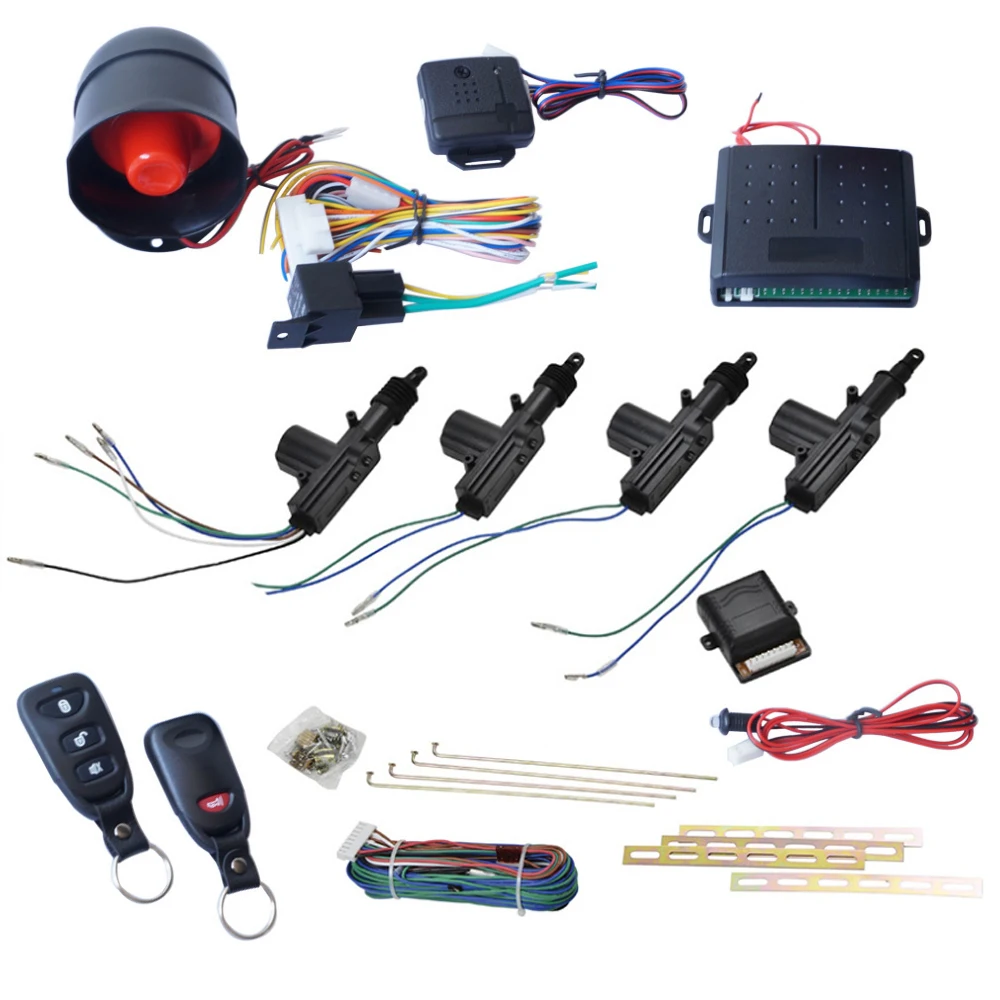

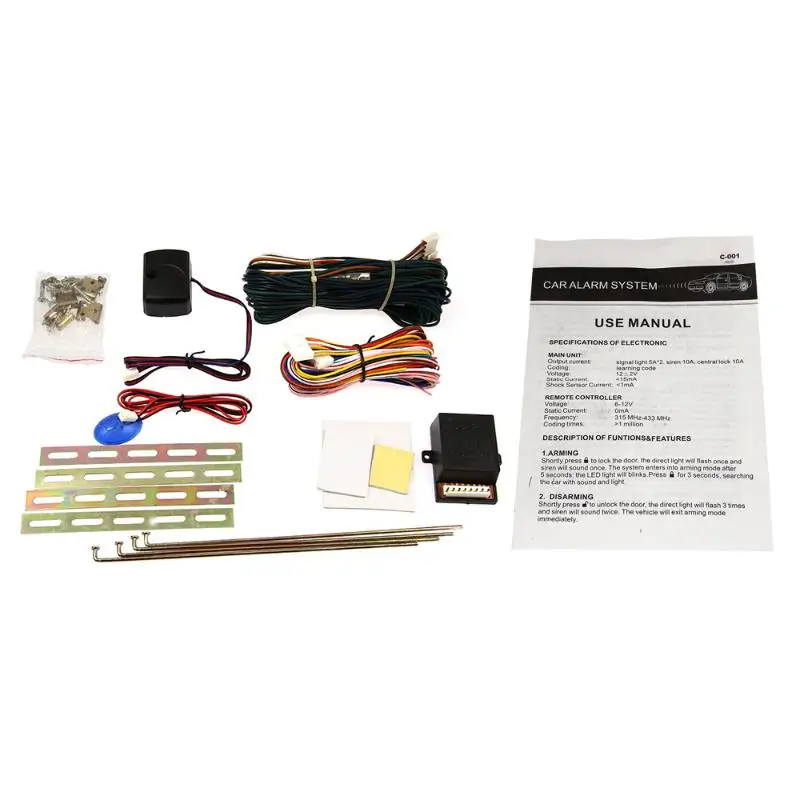

1 x Alarm host
2 x Remote control
1 x Sensor
1 x Alarm whistle
1 x Control box
1 x Blue light

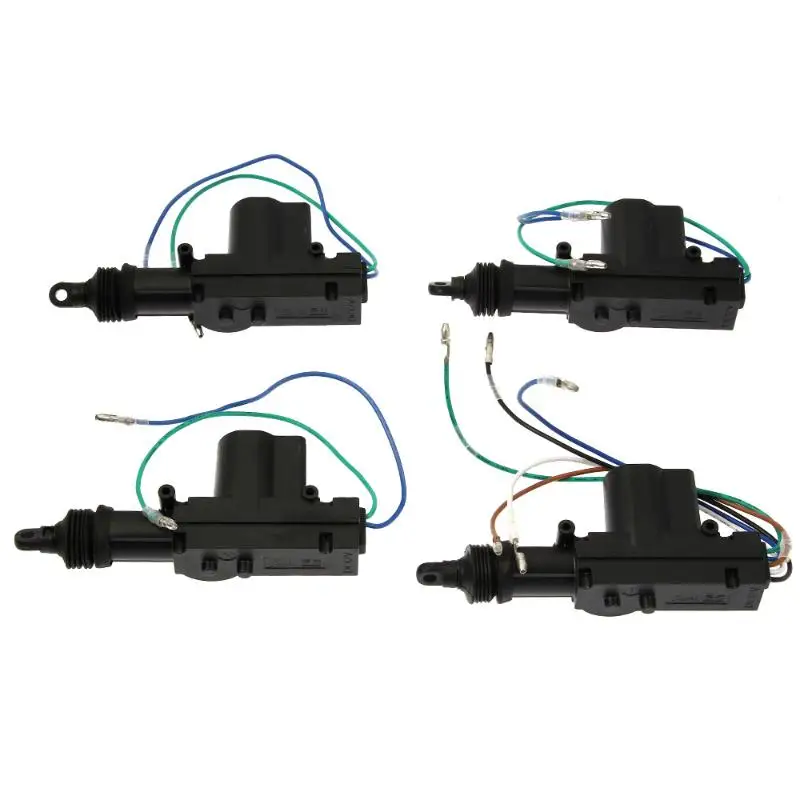

1 x 5-wire motor
3 x 2-wire motors
1 x Screw fittings
4 x Iron bars
4 x Iron hooks
1 x 11PIN cable
1 x 8PIN master cable
Original packaging
